My first newspaper article implementing mixed methodologies of journalism and data science was for the newspaper La Nación Argentina. I would like to share my experience during the process.

Methodology

Topic	Journalistic note applying data science to life stories
Data Science Techniques	data collection. Statistics and visualzation with rstudio
Journalism Techniques	Research and Interview
Complementary material delivered to the newspaper	codes, database
Additional alternatives for publish	cross platforms
Goal:	Provide scientific analysis to human events under a storytelling format. It allows to connect emotionally with the other based on a story but analyze the data more rigorously.
Link:	Complete article

Overview

In vitro fertilization (IVF) is a laboratory technique where oocytes are fertilized with sperm. This article focuses on the story of Alejandra Ginel, a 44-year-old woman who shares her experience of becoming a mother through IVF.

Data

The data used in the article were collected from the Latin American Registry of Assisted Reproduction and the RAFA Argentine Registry of Assisted Fertilization of pregnancies and births.

One of the challenges faced during this stage was the limited volume and inconsistency of data collection. As a result, a significant amount of time was dedicated to working with the obtained data and generating the required estimators.

Code

summary(trat_nac)  # Fertilization treatments performed

      Años       Tratamientos    Nacimientos
 Min.   :1990   Min.   :  741   Min.   :  73
 1st Qu.:1998   1st Qu.: 2716   1st Qu.: 453
 Median :2005   Median : 6614   Median :1491
 Mean   :2005   Mean   : 8175   Mean   :1529
 3rd Qu.:2012   3rd Qu.:11678   3rd Qu.:2472
 Max.   :2020   Max.   :21409   Max.   :4024

Code

summary(e_eyn2020) # Births and Pregnancies data

    Edades           Nacimientos      Embarazos          Prob
 Length:4           Min.   : 79.0   Min.   :102.0   Min.   :0.6242
 Class :character   1st Qu.:213.2   1st Qu.:295.5   1st Qu.:0.6685
 Mode  :character   Median :322.5   Median :490.0   Median :0.7000
                    Mean   :335.2   Mean   :496.2   Mean   :0.6997
                    3rd Qu.:444.5   3rd Qu.:690.8   3rd Qu.:0.7311
                    Max.   :617.0   Max.   :903.0   Max.   :0.7745

Data visualization

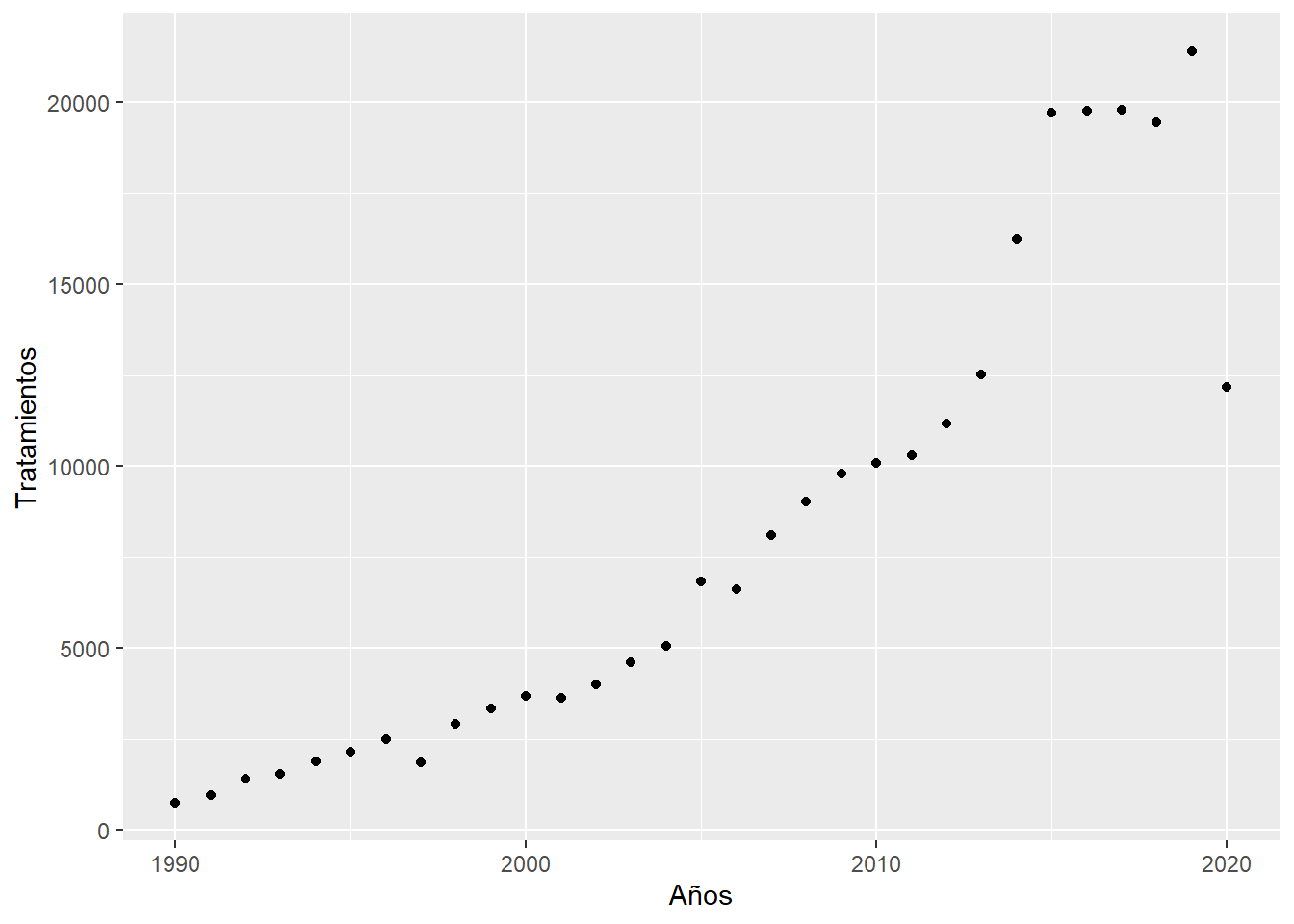

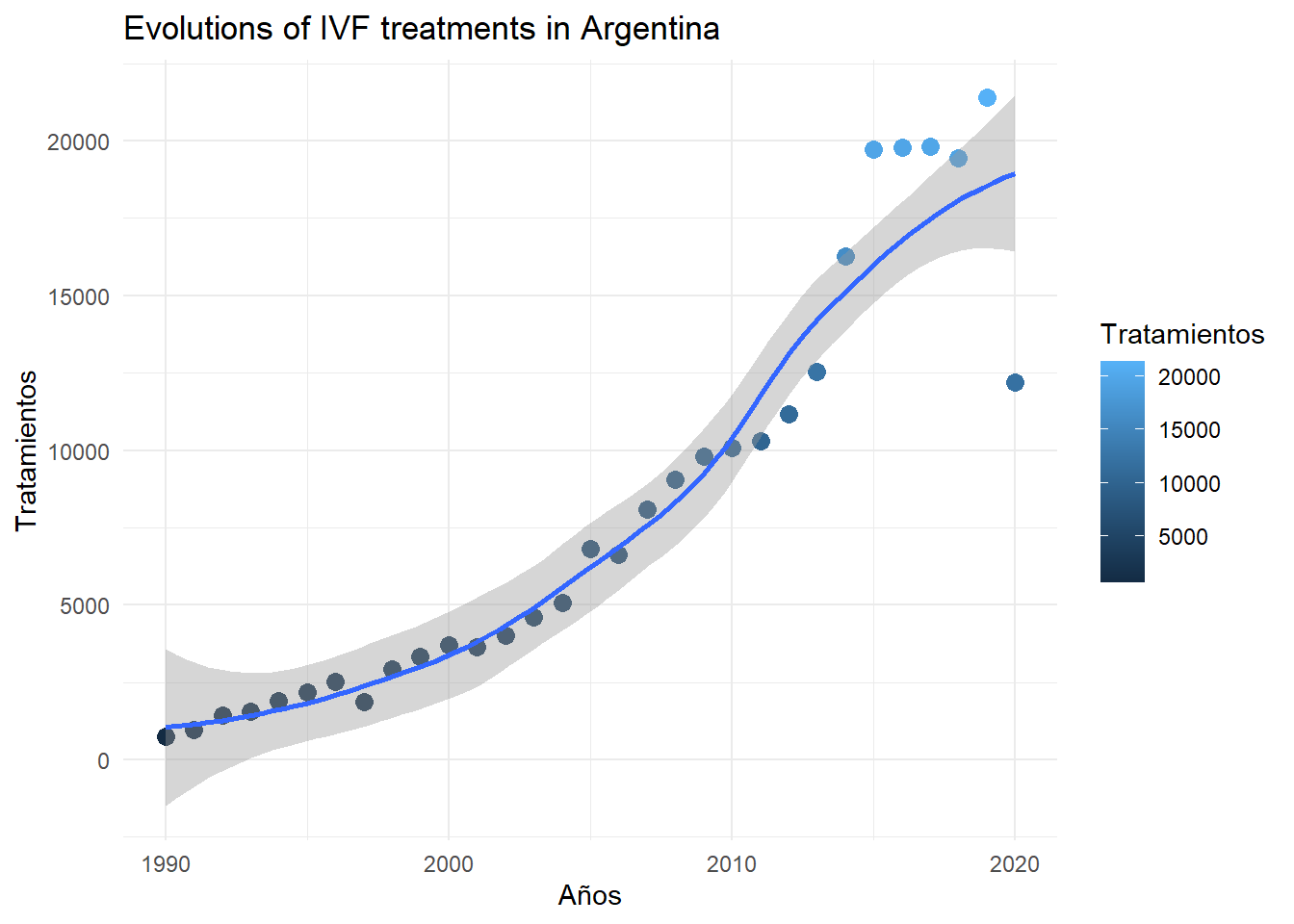

As part of the exploratory analysis, a scatterplot graph @fig_scatterplot was created to represent the relationship between time (X-axis) and the number of fertilization treatments performed (Y-axis).

Code

#| label: fig-scatterplot
#| fig-cap: Evolutions of IVF treatments in Argentina
#| fig-subcap:
#|   - "Color by number of treatment"
#|   - "confidence band"
#| warning: false
#| layout-ncol: 2
#| column: page-right

t <- ggplot(trat_nac,aes(Años,Tratamientos))
t+geom_point()

Code

t+geom_point(aes(color=Tratamientos), size=3)+geom_smooth() + ggtitle("Evolutions of IVF treatments in Argentina") + theme_minimal()

`geom_smooth()` using method = 'loess' and formula = 'y ~ x'

Analysis: The annual growth in the number of treatments remained constant over time. However, there was a significant increase from 2013 to 2014, with more than double the number of treatments (29%) compared to the same period of the previous year (12%). This leap can be attributed to the implementation of the In Vitro Fertilization Law in Argentina (Law: 27862), which regulated the coverage provided by health insurance companies in the country. Another notable event occurred in 2020 when the number of treatments dropped significantly due to the impact of the COVID-19 pandemic.

Probablity of births over pregnancies

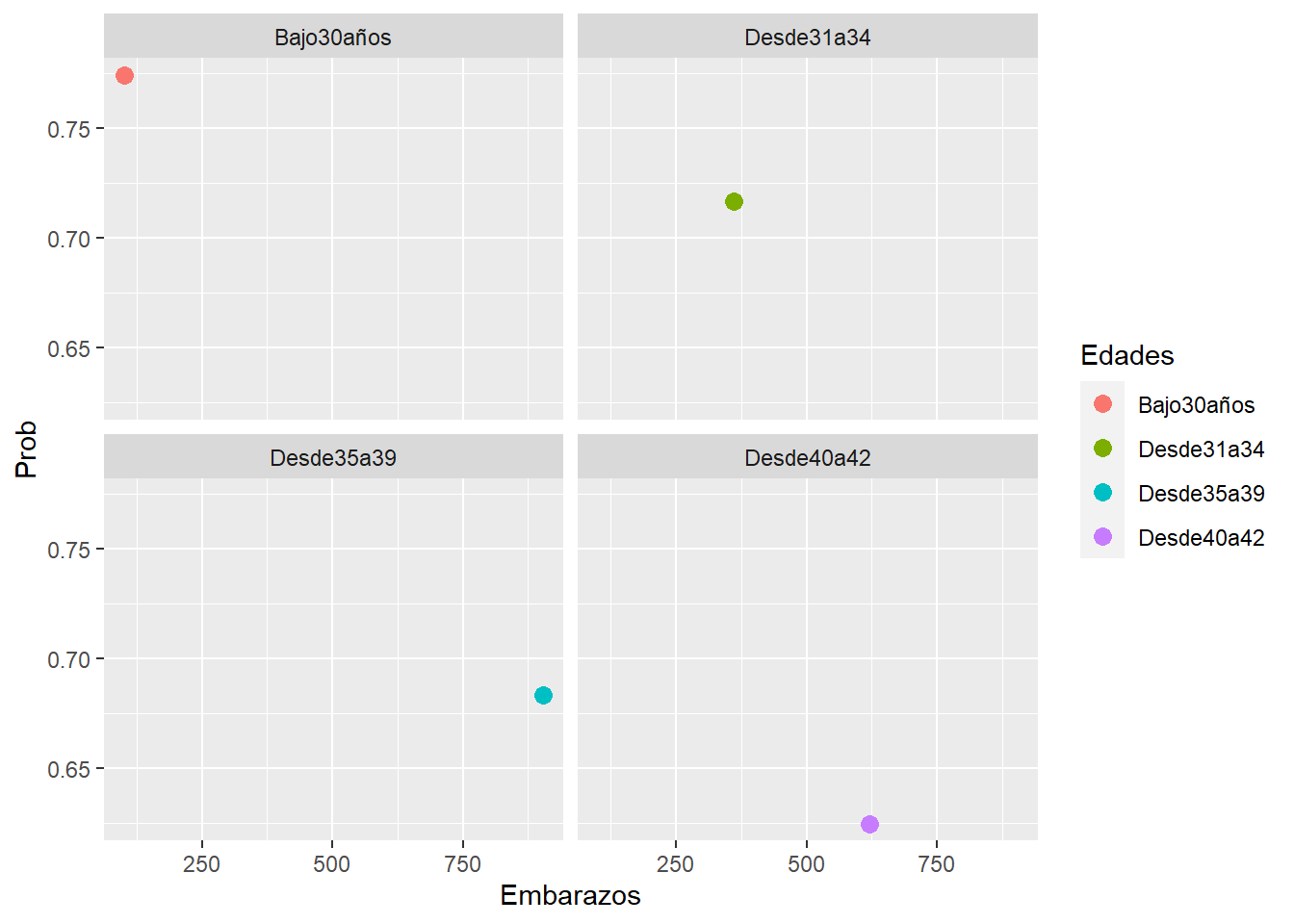

Next, a boxplot graph @fig_boxplot was generated to depict the probability of births over pregnancies using data from the year 2020. The graph was divided into age facets, with pregnancies on the X-axis and the probability of birth on the Y-axis.

Code

e <- qplot(Embarazos, Prob, data = e_eyn2020, facets=~Edades,color=Edades)

e+geom_point(size=3)

b <- e+ geom_boxplot(size=1.7) + ggtitle("probability of births over pregnancies")

Figure 1: probability of births over pregnancies

Analysis: The probability of births over pregnancies decreases with age. After the age of 40, the probability of successful birth through IVF drops to around 62%, compared to 77% for women under 30 years of age. Additionally, it is observed that 46% of pregnancies in 2020 were among women aged between 35 and 39 years.
